After attending a workshop at NICAR several months ago on flight tracking to track aircraft for journalistic reasons, from tracking dictators to seeing where Jeffery Epstein’s plan’s flew, I realized I wanted to do a project regarding flight data. I realized I could do this recently when after I bought a RTL-SDR + an antenna, I could use these tools combined with Dump 1090 to capture and analyze flight data in real time.

However, one flaw is eventually, one’s own work computer has to be turned … off. I had a Raspberry Pi on hand, so I got the final parts required (HDMI cable, SD chip with NOOBs installed, a charger, and keyboard to get everything set up. And wow you get quite a bit of information from running dump 1090

How to do it

For setting up the Raspberry Pi, I followed the instructions here. While you don’t need to do it, it will make your life a lot easier if you enable SSH (Secure Shell) on the Raspberry Pi. Considering the instructions to set up Dump 1090 on Linux (Raspberian) to be specific, involve quite a bit of copying and pasting, I advise that you do this. As for the antenna, as I mentioned above, a RTL-SDR is required, I suggest the model mentioned here.

I followed the instructions here to set up Dump 1090 on the Raspberry Pi. While it was written a few years ago, the instructions still work just fine and baring any surprises once everything is installed one should be able to run Dump 1090.

Finally to extract the data, one needs to ensure that the net argument is flagged when working with Dump 1090, to ensure one can grab the data from the network specifically localhost 30003 to be written to a CSV file or database of any kind.

So, What is All this Stuff Exactly?

A SDR is a software radio scanner that let’s one scan live radio signals without radio, and with other programs, do other tasks such as receive satellite imagery, decode maritime boat positions, and far much more.

Dump 1090 is a program by Antirez (of Redis fame) that let’s one use a RTL-SDR device to grab and detect mode S data from aircraft. Planes in the majority of the world are required to be equipped with mode S transponders, meaning anyone in practice can grab the signal to see where planes are going. This makes it possible for example, to track the private planes of dictators or those hiding their flight from public view for various reasons. The data provided ranges from the ICAO address, a unique address for a aircraft, along with statistics such as altitude, speed, latitude, longitude, and quite a few others.

A Raspberry Pi is a type of computer meant to be an introduction to computer science by providing an introductory experience in working with a computer from a more hands on perspective, from working more with the command line to setting up key hardware. A large amount of hobbyist and commercial activity has sprung around Raspberry Pi’s in the past few years, as they are highly versatile. Due to requiring low power and by design, it is very easy to run a Raspberry Pi “headlessly” (without a user interface), as one can SSH into the Raspberry Pi and work with it from another computer. By having a computer and as a result a server running 24/7, many programs that require to be run either constantly or run on a scheduled basis are possible. Additionally, by being a physical computer versus just being a computer in the cloud, one do additional hardware work to expand the Raspberry Pi’s functionality.

Some Analysis:

Having collected several hours’ worth of flight data, there are quite a few different forms of analysis one can perform.

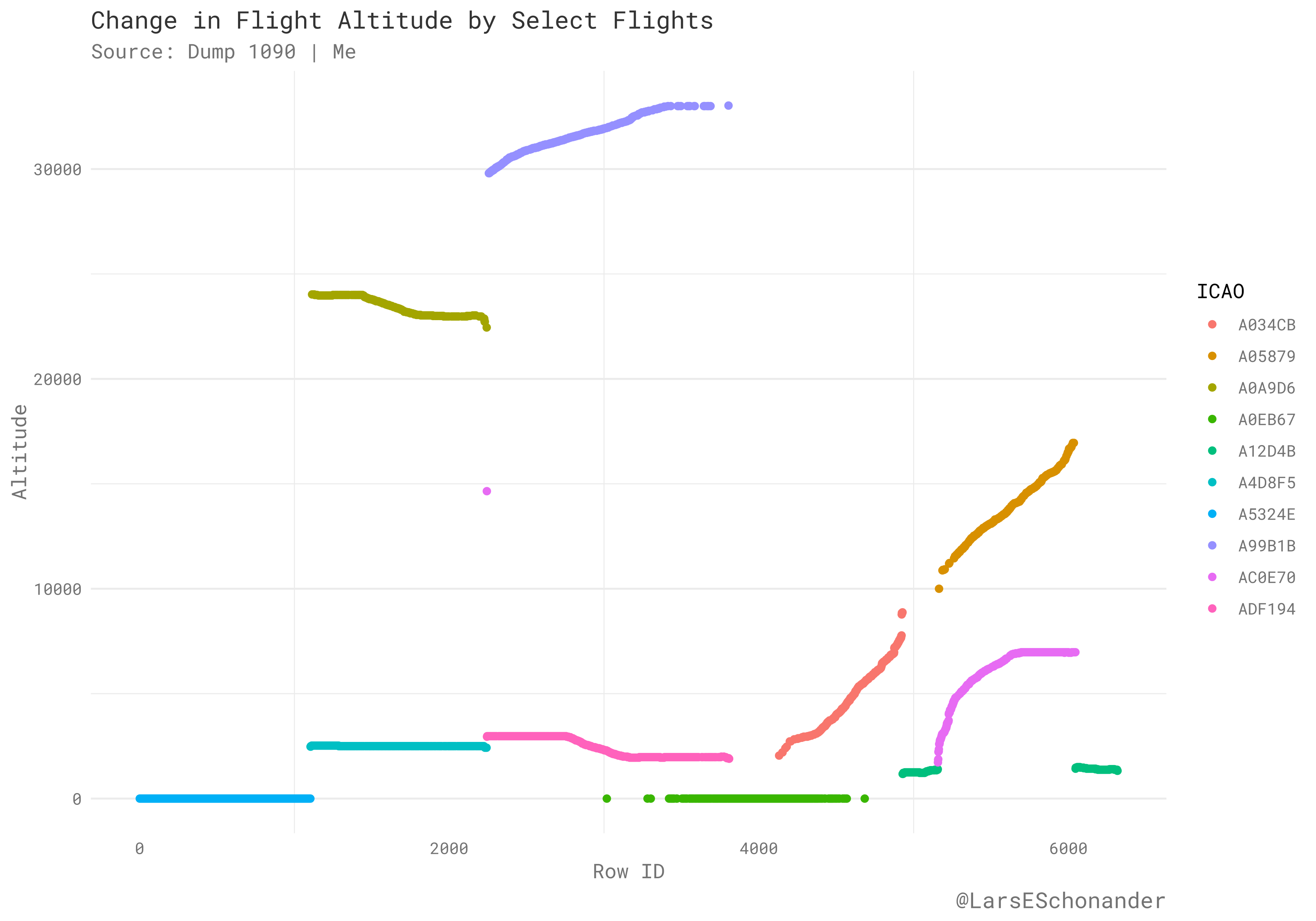

For example, one can collect the altitude of a given flight while it is in range, and see if it is ascending, descending, or just staying at a consistent altitude.

Using Leaflet to grab Open Street Map tiles, it becomes pretty easy to visualize over a decently large radius the flight paths of the flights passing by. For example, one can clearly see a flight fly out of La Guardia airport. More impressively, for such as simple antenna, it was able to get the Mode S data from planes across the Long Island Sound.

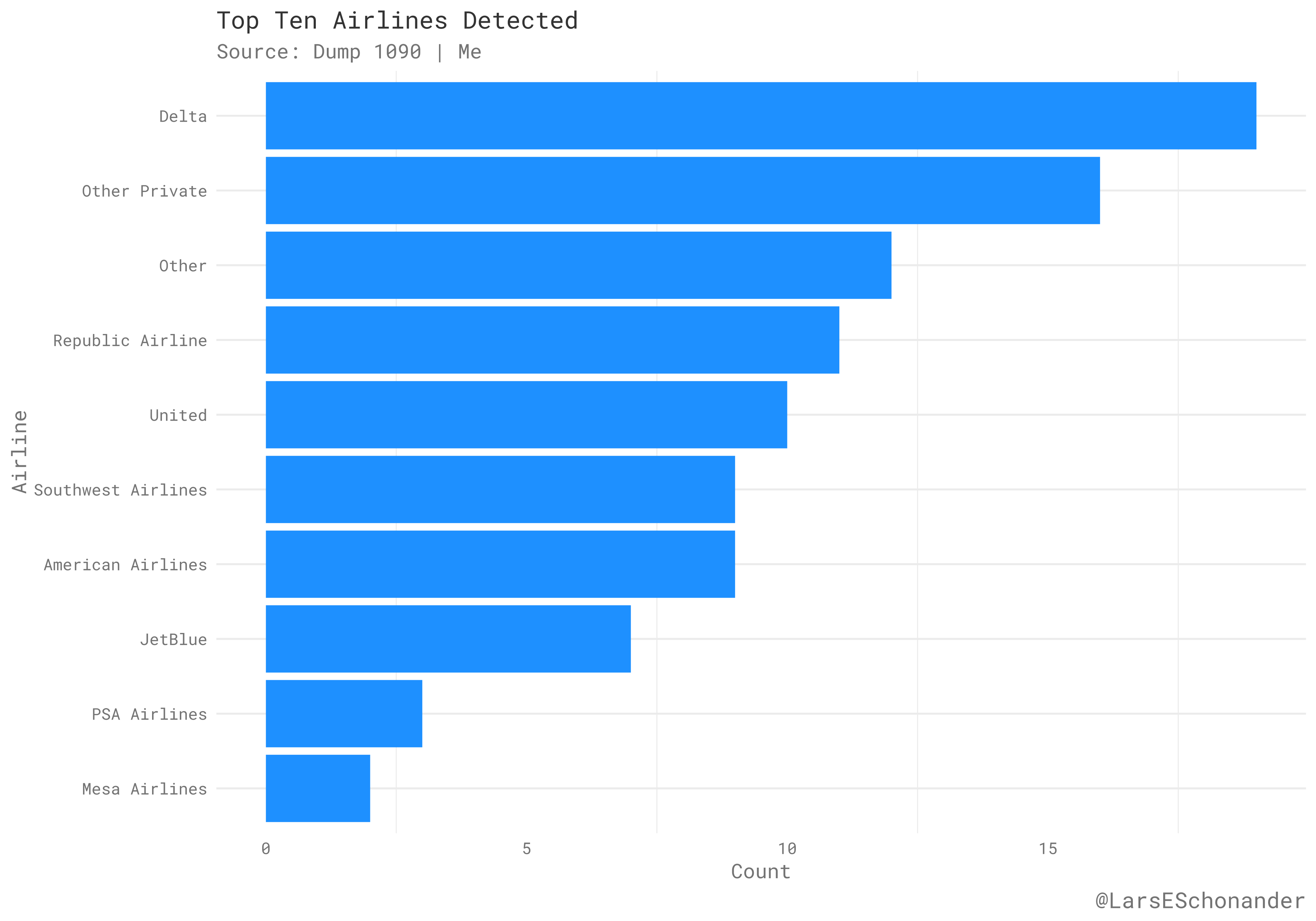

Additionally, through the flight codes that each flight has, it is possible to check what were the most common airlines that flew in the area. Note that for this analysis, any flight that lacked the flight code was dropped.

Planes that start with n as the first letter in their code are private planes. These flights while not available to see existing on the website of JFK or a regular airport, due to the work that other hobbyists do through sites like flightaware, are possible to see who nominally owns them. Given my location, the private flights unsurprisingly included several from various small airports to Montauk and Martha’s Vineyard. While some hobbyist planes are found, many of the models are private jets flying off somewhere for business related reasons.

What’s more interesting is the long tail, so to speak, on airlines. While the major airlines are indeed present, the sky is filled with many smaller airline companies and private planes flying off to places for various reasons.
